Includes:
Dome/Speaker, Speaker wire harness and Hanging
Bracket
Our Sound Dome requires an amplified source. We
recommend using our
Mini Amplifier. This is made specifically
for our sound domes with only a 2 x 10 watt
output. You can use your own stereo/amplifier,
but our warranty will not cover blown speakers
due to too much wattage.
Patented Dual-Parabolic™ dispersion control
technology provides a targeted audio footprint
with true stereo separation. Twin 1.0 in concave
aluminum high-excursion drivers in individually
sealed compartments for stereo or mono music and
messaging. Patented ZeroReflection™ enclosure
technology for accurate sound reproduction.
Narrow 30º coverage angle for sharp focus. 20.25
in custom-molded PETG clear polymer dome for
minimal visual impact. User-selectable 350 Hz
high-pass filter. Single-point balanced mounting
for easy and clean-looking installs. Ships with
clear dome, custom colors available. Included
accessories: hanging bracket, mounting bushing
and a 15-foot hanging cable which includes four
16-gauge inputs and a CAT V cable. Optional
modules include motion sensor (FP-Motion) and
LED light (FP-Light); optional 15-volt, 5-amp or
15-volt, 3-amp power supply necessary for all
module accessories (AC-PS-1550 or AC-PS-1530).
Optional electronic accessories include 10- and
20-watt transformers with junction box for 25-,
70.7- and 100-volt applications (AC-JB10-XFMR,
AC-JB20-XFMR) and an external amplification unit
with power supply (SA202-RDT) for use with any
FP module. Ships as individual unit, bulk
shipping available. |
|
|
Frequency
Response (-3 dB) |
170 Hz – 22
kHz (300 Hz with high-pass
filter) |
|
Low
Frequency(-10 dB) |
130 Hz – 22
kHz (200 Hz with high-pass
filter) |
|
Sensitivity |
75.0 dB |
|
Power
Capacity RMS |
15 W |
|
Max SPL dB @
1 M |
87.0 dB |
|
Nominal
Impedance |
8 ohm stereo,
4 ohm mono |
|
Transformer
(Optional) |
25 / 70.7 /
100 Volt option
with a 8 Ohm direct |
|
Full-Range
Drivers |
2 x 1 in (25
mm) aluminum, high excursion |
|
Connections |
Four-conductor 16-gauge hardwire
leads, CAT-V cable included for
optional accessories |
|

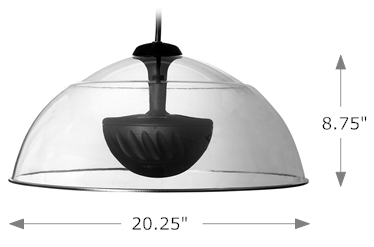

Height |
222.3 mm
(8.75 in) |
|
Diameter |
514.4 mm
(20.25 in) Dome |
|
Weight |
2.5 kg (5.5
lbs) |
|
Shipping
Weight |
5 kg (11.0
lbs) |
|
Optional
Accessory |
Wall bracket,
sound sleeves
and rigid mount adaptor |
|
Colors |
Clear dome,
black pod. Black
or white domes available. Custom
colors
also available for an up-charge. |
|
