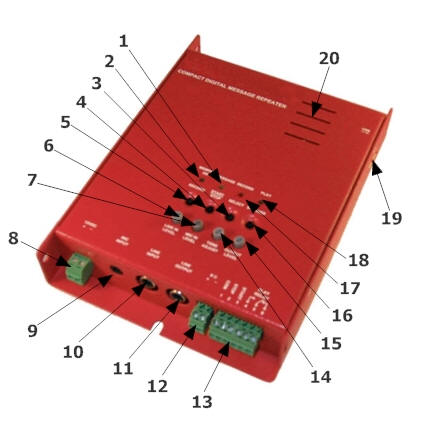

1 |
Message
LED (Yellow) |
Indicates the message number
selected by number of blinks. |
2 |
Memory
OK LED (Green) |
LED
is ON if valid message is detected.
Blinks if no files are detected by
system. |
3 |
Select
Push Button |
Allows users to select the current
message position to record info. or
play from. |
4 |
Start/Stop
Push Button |
Starts or stops recording or
playback based on current mode of
system. |
5 |
Record
Push Button |
Activates record set up mode. |
6 |
Line
In Level Knob |
Adjusts the audio level of the line
input. |
7 |
Mic
In Level Knob |
Adjusts the audio level of the
microphone input. |
8 |
Power
Jack |
Insert power adapter (Sold
separately). |
9 |
Mic
Input (1/8" Mini Jack) |
Connect low impedance microphone for
local recording. |
10 |
Line
Input (RCA Jack) |
Connect line level audio input for
local recording. |
11 |
Line
Output (RCA Jack) |
Audio output level of up to +3dB
into 600 Ὠ. This is standard level
for most applications. |
12 |
Speaker
Output |
Audio output level of up to 2.5W
into 8Ohm. Use this if more drive is
needed. |
13 |
Remote
I/O (6 pin) |
Provides remote access to start and
stop control and play relay output. |
14 |
Tone
Adjust Knob |
Adjusts the Bass & Treble amount to
deliver the best overall system
performance. |
15 |
Output
Level Knob |
Adjusts the volume to both line
level and speaker audio outputs. |
16 |
Speaker
Push Button |
Turns local monitor speaker On/Off. |
17 |
Record
LED (Red) |
Displays recording mode. Red light
on indicates message is being
copied. |
18 |
Playing
LED (Green) |
Green light is On when system is
playing pre-recorded message. |
19 |
USB
Connector |
Audio files can be copied directly
from a USB memory key to the systems
internal memory. |
20 |
Monitor
Speaker |
Allows user to preview message play
back. |
